Sinks

Sinks are connections to endpoints for which forwarders can be configured to stream points and events to.
Currently 2 types of sinks are supported:

To create a sink:

  • navigate to configuration > sinks
  • click Create sink in the top-right corner

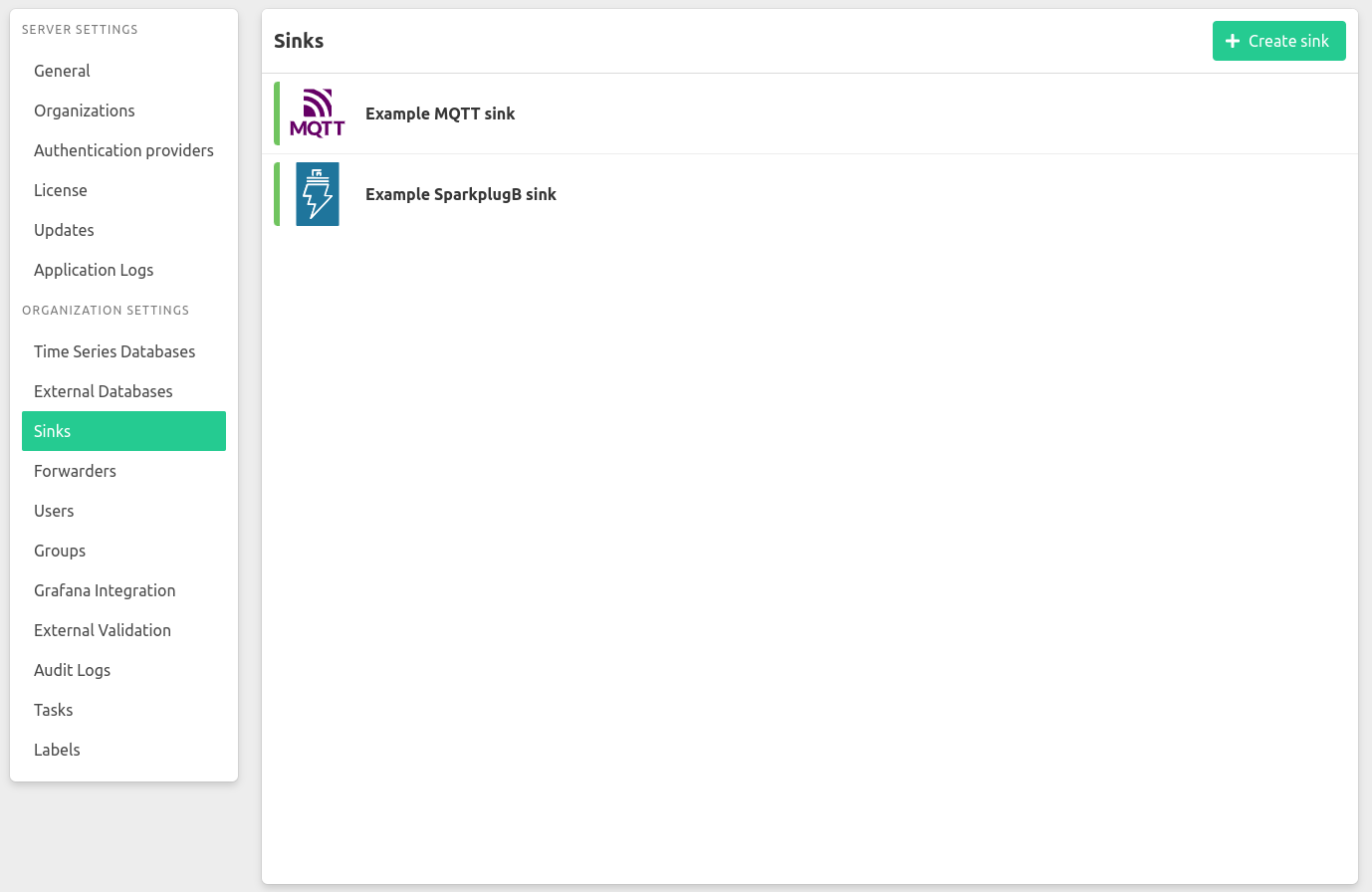

Sinks overview

This will take you to a screen to configure a new sink.

  • Enter a unique name
  • Optionally enter a description
  • Select a sink type

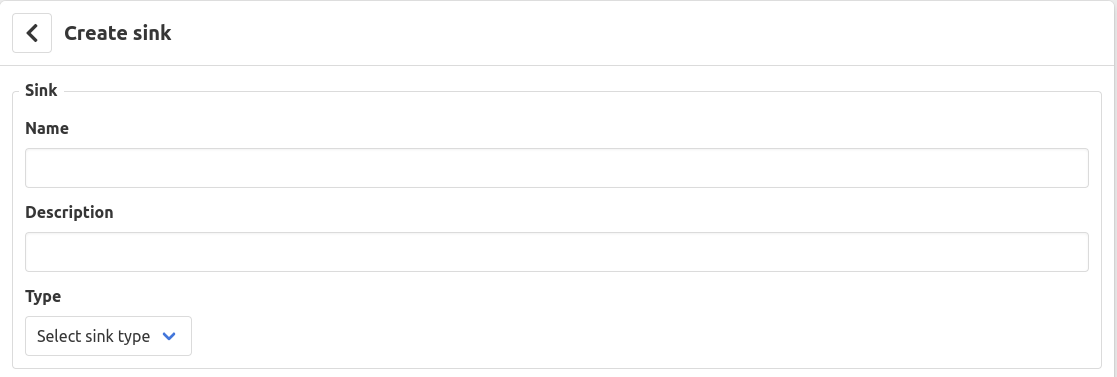

Sinks basic settings

SparkplugB

  • Enter a NodeID to connect to
  • Enter a GroupID to connect to
  • Enter the URL of the MQTT broker to connect to
  • Enter the client certificate file location if applicable
  • Enter the client key file location if applicable
  • Enter the username
  • Enter the password
  • Enter the keep alive period(in seconds)
  • Optionally, enter the max amount of metrics to send per message. By default this is set to 0, which means no limit.
  • Optionally toggle DataOnly mode. When enabled no birth or death messages will be sent, only data messages will be sent.
  • Optionally enable the buffer, if enabled, the sink will buffer messages when the MQTT broker is not reachable.
  • Optionally configure the buffer settings:
    • Process interval (in milliseconds): The interval at which the buffer is processed.
    • Max batch size: The maximum number of messages in a batch, the batch size determines how many messages are sent in one go.
    • Max batches: The maximum amount of batches to keep in memory, when the maximum is reached a batch will be saved to disk if the disk queue is enabled and there is space available.
    • Disk batches: The maximum amount of batches to write to a single file on disk
    • Min free disk space: The minimum amount of free disk space required to write a batch to disk, if the free disk space is below this value, the sink will not write batches to disk and will drop batches instead.
    • Max disk space: The maximum amount of disk space to use for the buffer, if the maximum is reached, the sink will drop batches instead of writing them to disk.
    • Enable disk queue: If enabled batches will be written to disk when the maximum amount of batches in memory is reached or the application is stopped.

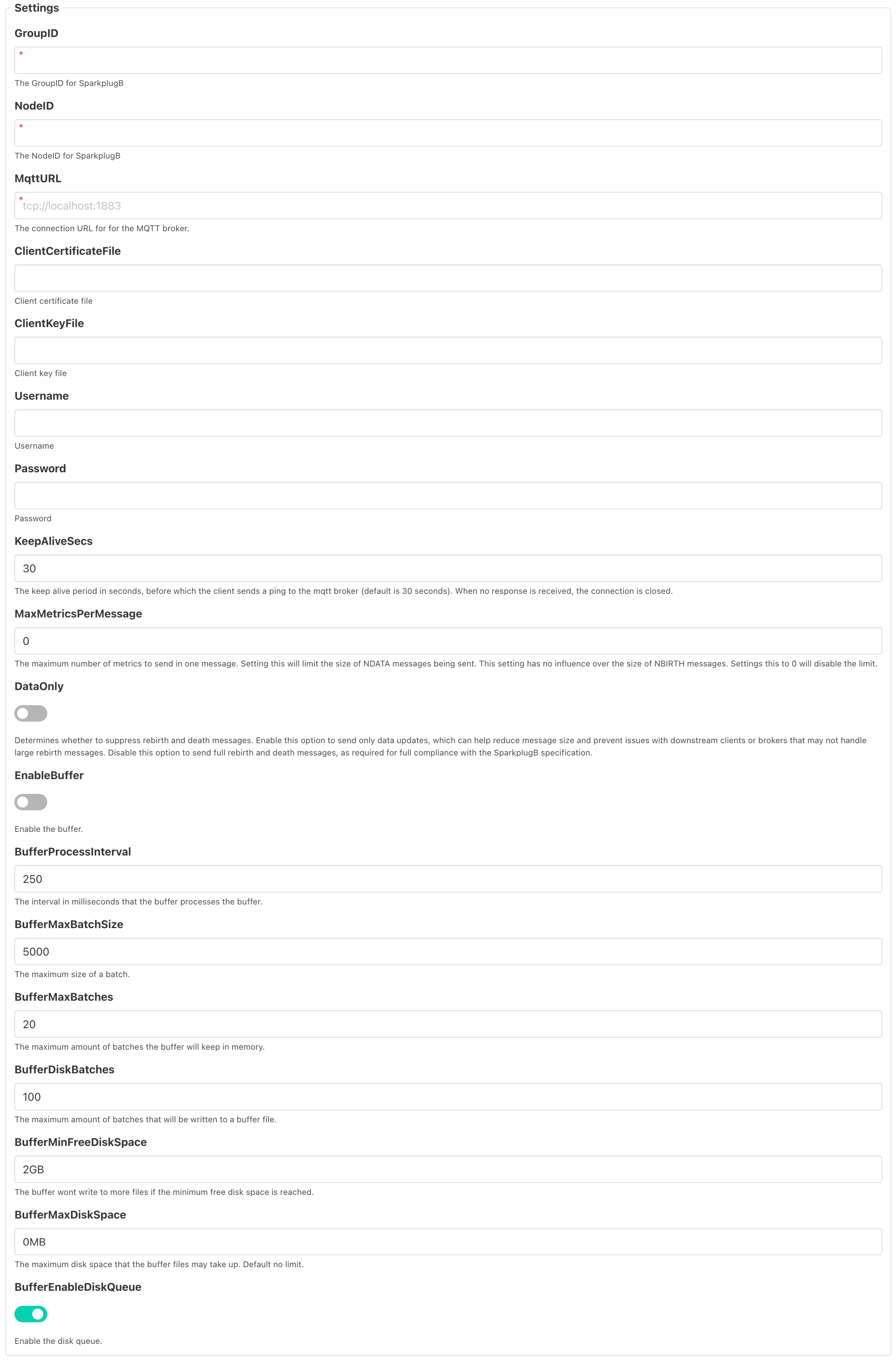

Sinks SparkplugB settings

Generic MQTT

  • Enter the URL of the MQTT broker to connect to
  • Enter the client certificate file location if applicable
  • Enter the client key file location if applicable
  • Enter the username
  • Enter the password
  • Enter the QOS with which to publish
  • Enter the keep alive period(in seconds)
  • Optionally enable the buffer, if enabled, the sink will buffer messages when the MQTT broker is not reachable.
  • Optionally configure the buffer settings:
    • Process interval (in milliseconds): The interval at which the buffer is processed.
    • Max batch size: The maximum number of messages in a batch, the batch size determines how many messages are sent in one go.
    • Max batches: The maximum amount of batches to keep in memory, when the maximum is reached a batch will be saved to disk if the disk queue is enabled and there is space available.
    • Disk batches: The maximum amount of batches to write to a single file on disk
    • Min free disk space: The minimum amount of free disk space required to write a batch to disk, if the free disk space is below this value, the sink will not write batches to disk and will drop batches instead.
    • Max disk space: The maximum amount of disk space to use for the buffer, if the maximum is reached, the sink will drop batches instead of writing them to disk.
    • Enable disk queue: If enabled batches will be written to disk when the maximum amount of batches in memory is reached or the application is stopped.

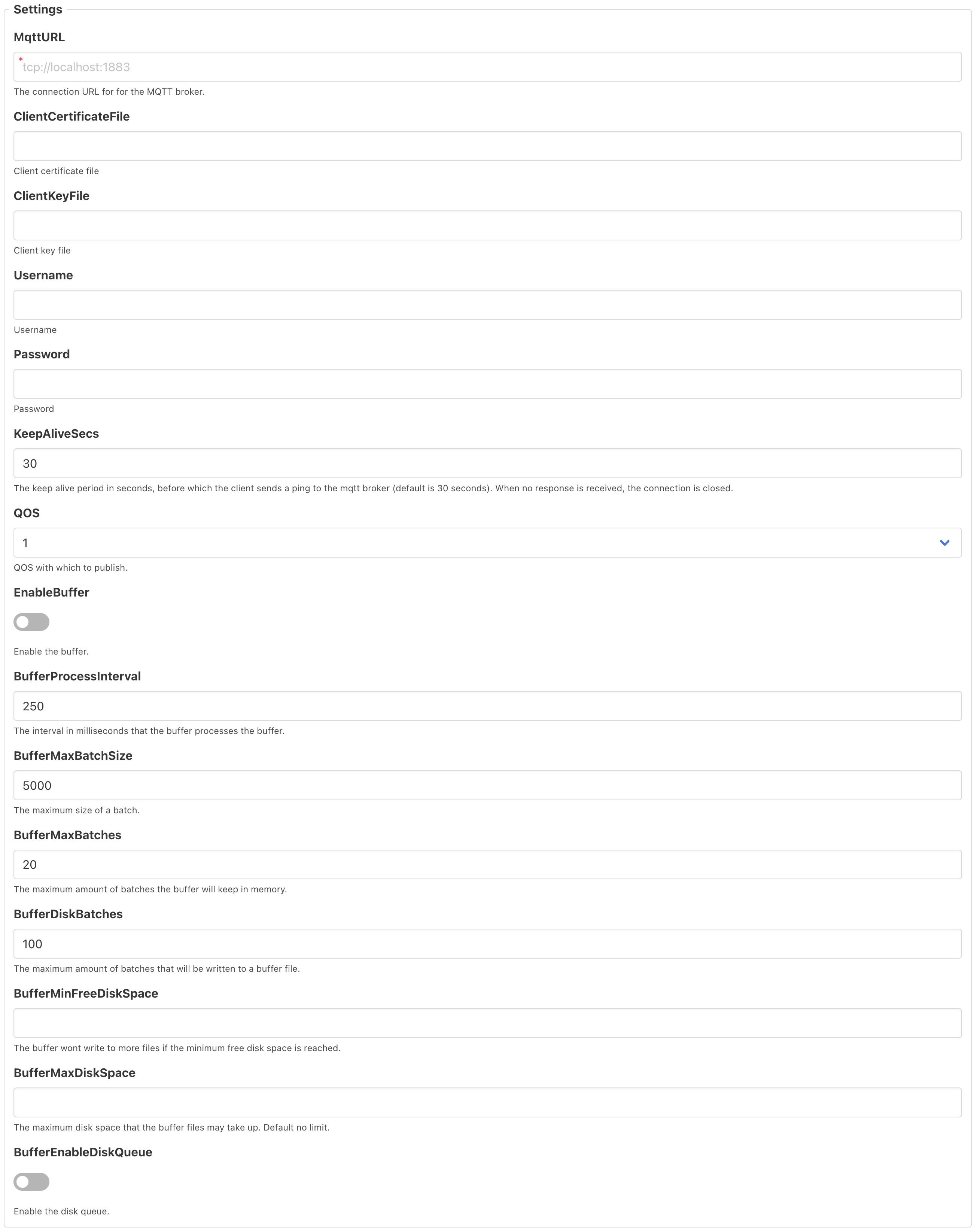

Sinks Generic MQTT settings
